HIGH SPEED & PRESSURE INJECTION / INJECTION COMPRESSION SYSTEM
High Speed & High Pressure Molding
Filling a thin wall section requires high speed and high pressure injection capabilities. Because thin wall sections are exposed closely to the mold cavity surface it drastically loses its molten material heat. These applications are perfect for our super high speed and high pressure injection capabilities.
A new hydraulic servo system control improves injection speed and injection pressure dropping response after V-P switchover.
HSP Series
Case Study
Wall Thickness
Application
0.288 – 0.292mm
Light Guide – PC
-

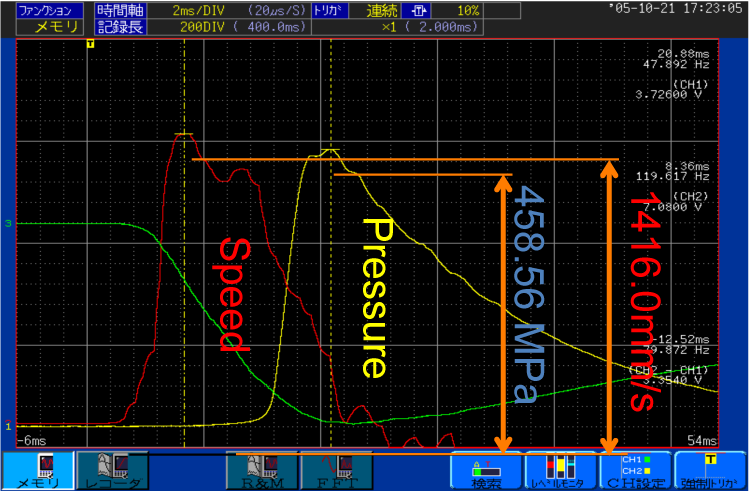

5.9 ms (0.0059 sec) to reach 1416mm/sec (55.7”/sec)
-
6.2 ms (0.0062 sec) to reach 458 MPa (66,427 psi)
The injection compression clamping system helps reduce molding defects such as warpage, distortion and excessive shear. Injection compression molding also reduces its clamping force and cooling time.
We offer the most advanced injection compression system in the industry:
-
High speed / high response injection compression control
-
Maintains tight dynamic parallelism
-
Accurate alignment of mold open-close
Injection Compression System
HSP Series Injection Unit Specification
PLUNGER DIAMETER
Max injection speed (mm/sec)
Max injection pressure (MPa)
Injection rate (cm3/s)
Injection rate (cm3/s)
Injection acceleration (G)
Speed rising time (msec)
Speed falling time (msec)
P22
1500
343
569
15.3
10
5
P32
294
1000
803
14.5
10
5
P28
1500
343
923
21.8
10
5
P40
343
1000
1256
10.2
10
5
